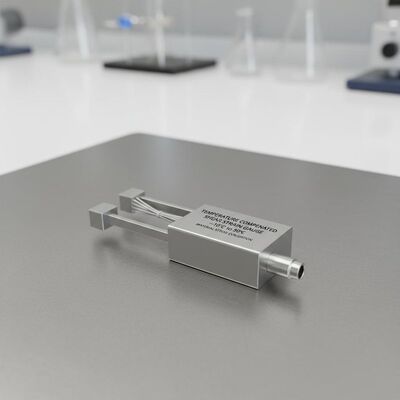

Minus 10 to 50 Degrees Temperature Compensated Shear Strain Gauge Providing Performance for Material Stress Evaluation

Product Description:

The Strain Gauge Load Cell is a high-performance measurement device designed to deliver precise and reliable load sensing across a wide range of applications. With a capacity ranging from 1 to 30 tons, this load cell is engineered to accommodate various heavy-duty industrial and commercial weighing requirements, making it an ideal choice for industries such as manufacturing, construction, material testing, and automation.

One of the standout features of this load cell is its exceptional repeatability, boasting a value of ≤0.01% F.S. (Full Scale). This level of accuracy ensures that measurements remain consistent and dependable even under repeated loading and unloading cycles, which is critical for maintaining quality control and ensuring operational efficiency in demanding environments.

The load cell utilizes advanced Full Bridge Strain Gauges, which play a vital role in converting mechanical strain into an electrical signal with high precision. These Full Bridge Strain Gauges are arranged strategically within the sensor to maximize sensitivity and minimize error, providing accurate load measurements that are crucial for precise weighing and force monitoring.

In addition to Full Bridge Strain Gauges, the load cell incorporates high-quality Foil Strain Gauges known for their stability and durability. Foil Strain Gauges enhance the sensor's performance by offering excellent linearity and minimal hysteresis, which contribute to the overall accuracy and longevity of the load cell. This combination of Full Bridge and Foil Strain Gauges ensures that the device maintains superior measurement integrity even in challenging operational conditions.

Another critical element of the load cell design is the use of Shear Strain Gauge technology. Shear Strain Gauges are specifically employed to detect shear forces within the structure of the load cell, providing an additional layer of measurement accuracy. This technology helps in compensating for off-axis loads and reducing the effects of extraneous forces, thereby improving the overall precision and reliability of the load cell.

The load cell features a robust screw mount installation method, which allows for secure and straightforward mounting in a variety of setups. This mounting type ensures stability during operation and simplifies the integration process into existing systems or new equipment. The screw mount design also facilitates easy maintenance and replacement, minimizing downtime and enhancing operational productivity.

Performance-wise, this load cell stands out for its high precision and excellent overall performance. It is engineered to deliver consistent results across its entire capacity range, with minimal drift and excellent linearity. These characteristics make it suitable for critical applications where measurement accuracy cannot be compromised.

In terms of electrical properties, the load cell exhibits an impressive insulation resistance of ≥5000 MΩ at 100VDC. This high insulation resistance ensures minimal leakage current and protects the sensor from electrical noise and interference, which is essential for maintaining signal integrity and ensuring reliable data transmission in electrically noisy environments.

Overall, the Strain Gauge Load Cell combines state-of-the-art Full Bridge Strain Gauges, durable Foil Strain Gauges, and precise Shear Strain Gauge technology to deliver a high-precision, reliable, and robust solution for load measurement. Its versatile capacity range, excellent repeatability, secure screw mount installation, and superior insulation resistance make it an indispensable tool for professionals seeking accurate and dependable load sensing performance.

Whether used in industrial weighing systems, material testing machines, or force measurement applications, this load cell provides unparalleled accuracy and durability. Its advanced strain gauge technologies and thoughtful design ensure that it meets the highest standards of performance, making it a trusted choice for engineers, technicians, and quality control specialists worldwide.

Features:

• Product Name: Strain Gauge Load Cell
• Utilizes high-quality Resistance Strain Gauge for accurate measurements
• High Precision and Good Performance ensuring reliable data
• Operating Temperature Range: -10 ℃ to 60 ℃
• Compensated Temperature Range: -10 ℃ to 50 ℃ for stable readings
• Low Hysteresis: ≤0.02%F.S. for consistent output
• Available Capacity Range: 1 to 30 tons
• Incorporates advanced Strain Gauges technology for enhanced durability

Technical Parameters:

Applications:

The Top Sensor CL-04 Strain Gauge Load Cell is a highly reliable and precise sensor designed for a wide range of application occasions and scenarios. Manufactured in China with superior quality alloy steel or alloy aluminum, this load cell is ideal for industries requiring accurate force and weight measurements. Its capacity ranges from 1 to 30 tons, making it suitable for both small-scale and heavy-duty applications.

One of the primary application occasions for the CL-04 load cell is in industrial weighing systems. Thanks to its excellent hysteresis performance of ≤0.02%F.S., it ensures consistent and repeatable measurements, critical in manufacturing and processing plants. The load cell’s screw mount type allows secure and stable installation in various machinery and equipment, enhancing operational safety and reliability.

Additionally, the CL-04 load cell is widely used in structural health monitoring where linear strain gauges are essential. The integration of strain gauges within the load cell allows precise detection of minute deflections and stresses in structural components. This makes it an excellent choice for bridge monitoring, building safety inspections, and other civil engineering projects where accurate strain measurement is vital.

Another significant application scenario involves material testing laboratories. The linear strain gauges embedded in the Top Sensor CL-04 load cell provide highly accurate data on material deformation under stress, critical for quality control and research purposes. Its robust operating temperature range of -10 ℃ to 60 ℃ ensures reliable performance in various environmental conditions.

Furthermore, the CL-04 is extensively used in automation and robotics for force feedback and control. The precise readings from the strain gauges enable seamless integration into automated systems, improving process efficiency and product quality. With a supply ability of 2000 pieces per month and a minimum order quantity of 20 pieces, the Top Sensor CL-04 load cell is readily available for large-scale industrial deployment.

Packaging is handled carefully with carton boxes and pallets to ensure safe delivery within 20-25 days. Payment terms require T.T in advance, facilitating smooth transactions for international clients. Overall, the Top Sensor CL-04 strain gauge load cell, equipped with linear strain gauges, stands out as a versatile and dependable solution for diverse weighing, monitoring, and testing applications.

FAQ:

Q1: What is the brand and model number of this strain gauge load cell?

A1: The brand name is Top Sensor and the model number is CL-04.

Q2: Where is the strain gauge load cell manufactured?

A2: This product is made in China.

Q3: What is the minimum order quantity for the Top Sensor CL-04 load cell?

A3: The minimum order quantity is 20 pieces.

Q4: How is the product packaged for shipment?

A4: The load cells are packaged in carton boxes and pallets to ensure safe delivery.

Q5: What are the delivery time and payment terms for this product?

A5: The delivery time is typically 20-25 days and the payment terms are T.T in advance.

Q6: What is the monthly supply capacity of the Top Sensor CL-04 strain gauge load cell?

A6: The supply ability is 2000 pieces per month.
