Name: High Temperature Strain Gauge Pressure Transducer 150Mpa
Brand: Top Sensor Technology Co.Ltd
SKU: Pt112
Price: 999.30 USD
Availability: InStock

High Temperature Strain Gauge Pressure Transducer 150Mpa

1 PC

MOQ

negotiable

Preis

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Material: Edelstahl

Druckbereich: 0-150 MPa

Genauigkeit: 0,3%

Verwendung: Druckmessung

Sicherheitsüberlastung: 150%

Ausgangssignal: 2MV, 3,3 mV, 4-20 mA

Lastzelle: Dehnungsanzeige

Hervorheben:

high temperature pressure transducer

strain gauge pressure transmitter

150Mpa pressure transducer with warranty

Grundinformation

Herkunftsort: CHINA

Markenname: TOP SENSOR

Zertifizierung: CE

Modellnummer: Pt112

Zahlung und Versand AGB

Verpackung Informationen: 1 PC pro Box

Lieferzeit: 10 Tage

Zahlungsbedingungen: T/T, Western Union

Versorgungsmaterial-Fähigkeit: 300 PCs pro Monat

Galerie

High Temperature Strain Gauge Pressure Transducer 150Mpa

Produkt-Beschreibung

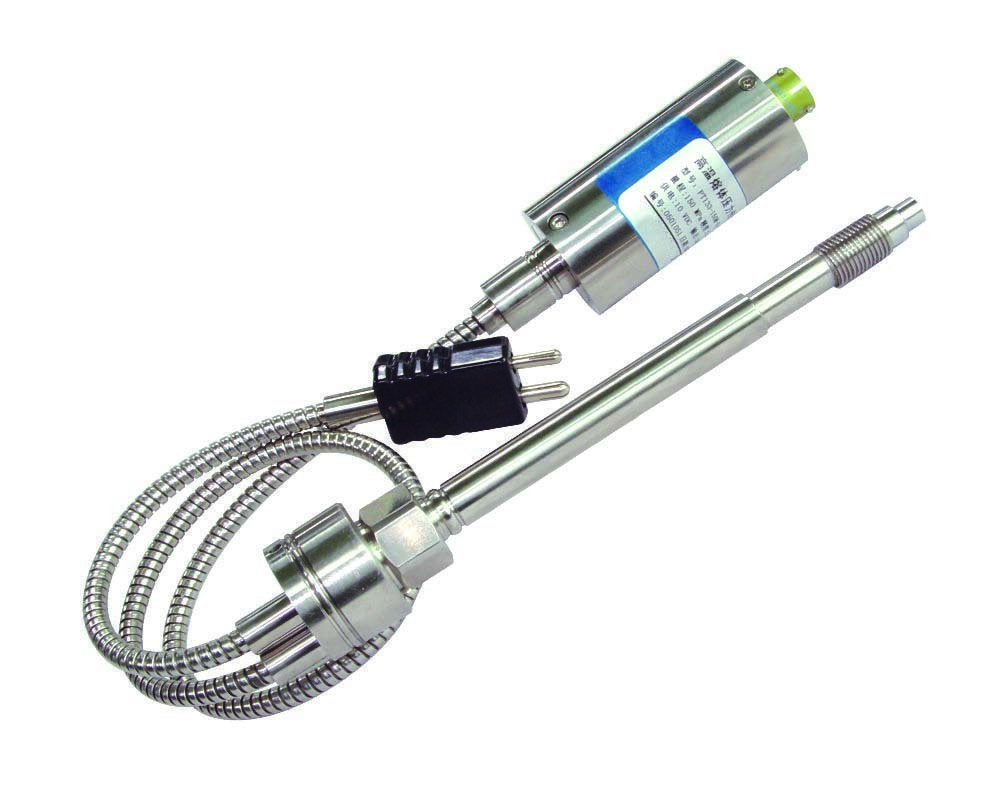

High Temperature Strain Gauge Pressure Transducer 150Mpa

Model: PT112

Melt Pressure Transducer

Melt Pressure Transducer, Pressure Sensor Model: PT112 Insulated by rigid or flex tube with thermocouple, this kind of melt pressure transducer can measure pressure and temperature at the same time Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other...

Send Inquiry

Melt Pressure Transducer, Pressure Sensor
Model: PT112
Insulated by rigid or flex tube with thermocouple, this kind of melt pressure transducer can measure pressure and temperature at the same time
Applying to pressure measuring and controlling of Rubber, Chemical fiber, Petro-chemical and other special occasions

Parameter	Value
Measure Range	0-150Mpa
Overload Pressure	1.5×RP(rated pressure)
Broken Pressure	3×RP(rated pressure)
Accuracy	±0.3, ±0.5, ±1%F.S
Stability	Typical ±0.5%F.S, Max ±1%F.S
Operate Temperature	－10℃~400℃
Wire	2 Wires/3 wires
Output Signal	2mv/v, 3.3mv/v, 4~20mA/0.5-4.5v
Power Supply	12~30Vdc
Internal Shunt Calibration (R-Cal)	80% FSO +/- 1%
Insulation	＞2000M @100V
Electric Connect	5 pins or 6 pins connector
Thread. Connect	1/2-20UNF or requested by customer
Response Time	10ms
Length of Rigid Stem	2.36", 60mm, or 6", 152mm
Length of Flexible Tube	18", 460mm

Customization: Melt pressure sensor outlet/ inlet, cable length
